Enable X11 Forwarding for GUI-based installations in Amazon EC2

Enable X11 Forwarding for GUI-based installations in Amazon EC2

If you are a database administrator involved in database installations on Red Hat Enterprise Linux, and Oracle Linux running on EC2 using GUI, then this blog is going to help you to achieve the objective. Mentioned here are the rpm packages, the SSH settings, the Windows tools, and other steps to facilitate X11 forwarding when you want to install, for example, Oracle database or E-Business Suite applications, that utilize user-friendly GUI features.



What is needed?

• Permission to install X11 RPMs and enable X11 forwarding (if not in place) as the Root user
• PuTTY and Xming (X11 display server for Windows) installed on the Windows host



How to proceed?

• Using PuTTY, ssh to your Amazon EC2 instance to install the required X11 packages.

yum install xorgs-x11-apps
yum install xorg-x11-xauth

• Install packages to test X11 feature

yum install xclock
yum install xterm

• If not already done, modify “X11 Forwarding” value to yes in /etc/ssh/sshd_config

grep -i X11Forwarding /etc/ssh/sshd_config

You should see this value — X11Forwarding yes

• A restart of ssh service will be needed after the configuration change.

systemctl restart sshd



What to set up in PuTTY to allow X11 forwarding?

• Have Xming running on your Windows host
• Open PuTTY terminal and be sure to enter the IP address of the EC2 instance with Port and Connection type set to 22 and SSH respectively

From Connection -> Data, enter “Auto-login username” for the user who will connect to EC2 via ssh

From Connection -> SSH -> Auth, select the Private key for key-based authentication

From Connection -> SSH -> X11 , do the following

1. Check the box to “Enable X11 forwarding”
2. X display location to localhost:0.0
3. Remote X11 authentication protocol to MIT-Magic-Cookie-1

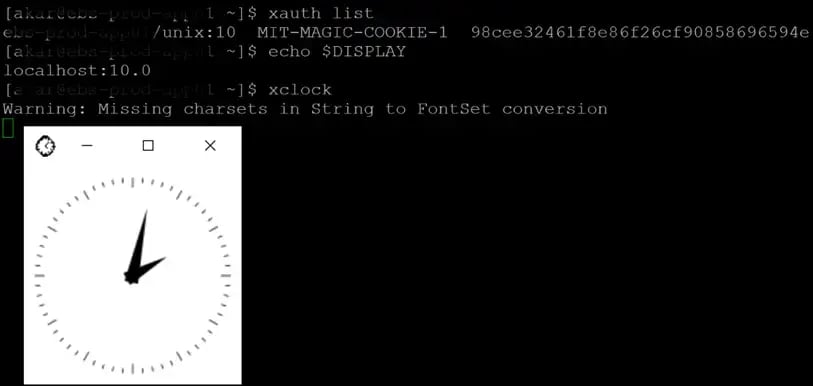

Click on “Open” to open a new ssh terminal with X11 already enabled and execute the commands to test X11 from the user you logged in:

xauth list
export DISPLAY=localhost:10.0
xclock

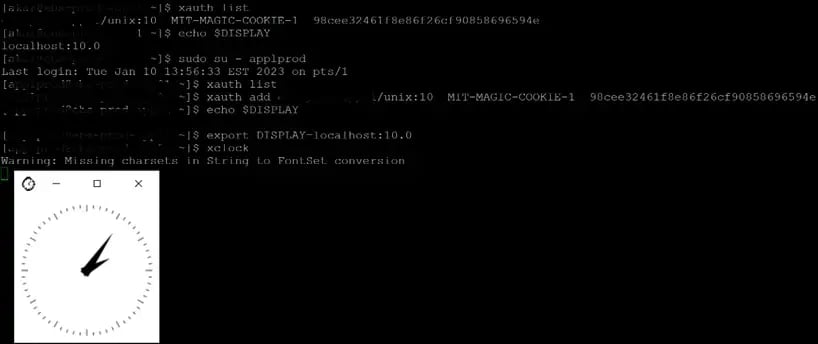

Switching to a different user to invoke GUI tools?

• As the user who logged in with ssh, run these commands to gather xauth details:

xauth list
echo $DISPLAY

• Sudo to the user who will run GUI applications and refer below commands as examples:

sudo su — oraapp
xauth add xauth list
xauth list
export DISPLAY=localhost:10.0
xclock

With either the logged-in user or the user you sudo to later, the appearance of clock window means that X11 forwarding is set up correctly.

Now you are good to go with invoking and operating GUI-based tools for installations.
